MPPT Solar Charger Controller

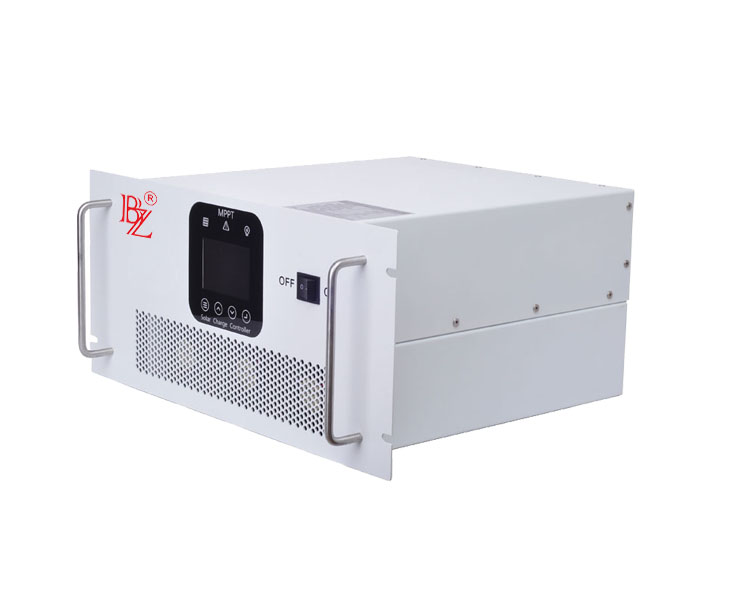

— 192V-600VDC Rack Mount MPPT Solar Charger Controller
Product category
192V-600VDC Rack Mount MPPT Solar Charger Controller
Features
1. High speed & performance 32bit processor, advanced EMC design
2. Advanced MPPT tracking algorithm, the tracking efficiency more than 99%
3. High performance IGBT power module as electronic switch, plus multiphase synchronous rectification technology, improves the stable greatly
4. Ultrafast maximum power point tracking speed to ensure tracking efficiency
5. Perfect battery protection function and advanced battery activation technology which increases battery lifespan 30% at least and improves the system performance
6. Widely PV arrays’ voltage input, this can save the cost of PV combiner box, wires and construction
7. Full enclosed duct design and high-speed fan for cooling makes the controller suitable for various harsh environments
8. 3’’ LCD screen and LED indicators show working parameters and system status
9. Parameters can be adjusted through touching keys in LCD panel
10. Users can check the power generation of daily, monthly and total through the statistical function of generating capacity (SOC)
11. Complete menu display and operation, plus the humanized design of browsing interface, makes the operation more easy
12.It shows the environment temperature, data and real time, auto temperature compensation function
13.Twice protection function to protect battery from damage when the power switch is down
14. Standard Modbus communication protocol for RS-485 or GPRS communication to extend the communication distance (optional function)
Model | BZMC192、220(216)、240 | BZMC360、384(380) | BZMC 480 | ||||||
Battery bank voltage | 192V、 220V(216V)、 240V | 360V、384V（380V） | 480V | ||||||
Rated charge current | 50A | 80A | 100A | 50A | 80A | 100A | 50A | 60A | 80A |
Controller charging method | MPPT ( Maximum power point tracking ) | ||||||||
Controller tracking efficiency | ≥99% | ≥99% | ≥99% | ||||||
PV module maximum open circuit voltage | DC800V | DC800V | 850VDC | ||||||
MPPT tracking start voltage | Vbat（ Actual battery voltage ）+20V | ||||||||
PV startup charging voltage | Vbat（ Actual battery voltage ）+10V | ||||||||
Maximum PV module power | 9.6KW 11.0KW 12.0KW | 15.2KW 17.6KW 19.2KW | 19.2KW 22.0KW 24.0KW | 18.0KW 19.2KW | 28.8KW 30.7KW | 36.0KW 38.4KW | 24.0KW | 28.8KW | 38.4KW |
Charging method | Four-stage charging: MPPT fast charge, equal charge (constant voltage), float charge, end charge | ||||||||
Human interaction | LCD display, touch button | ||||||||
Heat dissipation | Intelligent temperature control air cooling | ||||||||
communication | RS485 communication, standard Modbus protocol, optional DTU module for wireless remote monitoring | ||||||||
Use area elevation | ≤2000 meters, more than 2000 meters need to be derated | ||||||||
Working temperature | -25℃~+55℃ | ||||||||
Equipment protection level | IP21 | ||||||||
Weight | 25kg | 28Kg | 25Kg | 28Kg | 25Kg | 28Kg | |||
Size | 494*384*187mm | ||||||||
